Fiber Array

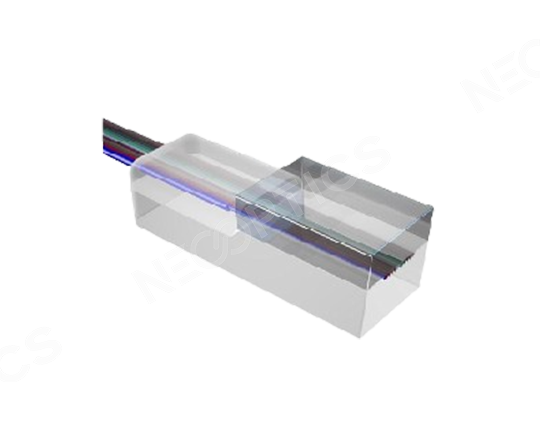

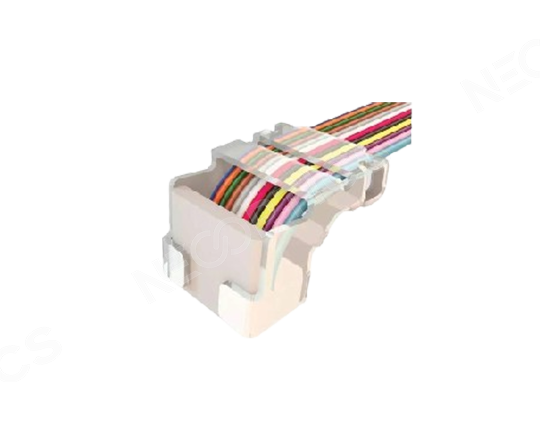

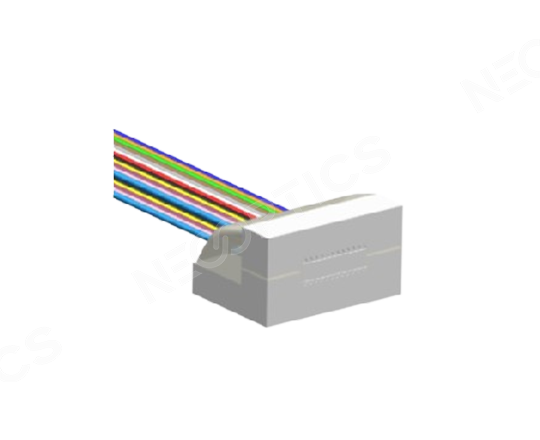

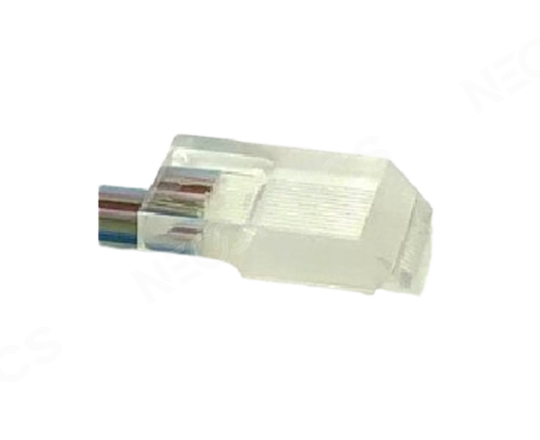

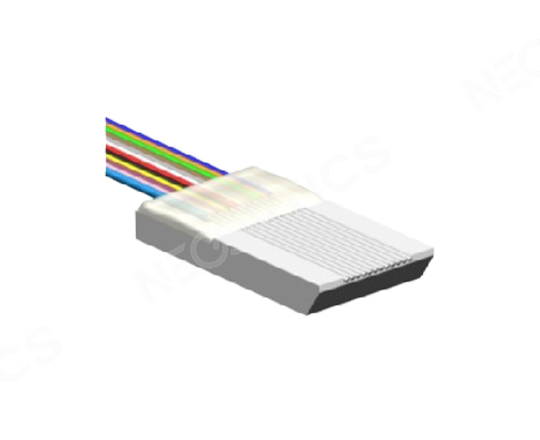

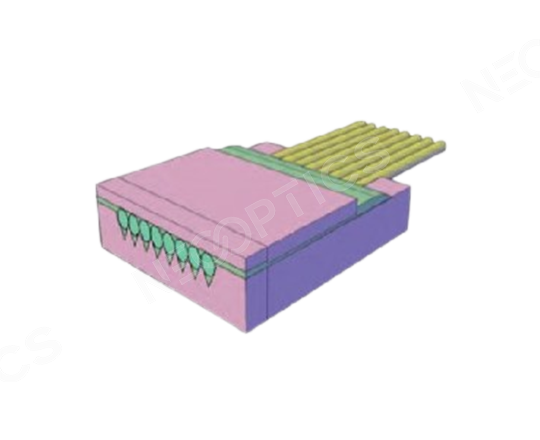

Fiber Array (FA) is an optical device constructed by precisely aligning multiple optical fibers or fiber ribbons on a substrate with V-shaped grooves (V-Grooves). This architecture ensures accurate positioning of fiber cores to minimize connection losses and enable high-density optical signal transmission.

Consult

Product Feature
Product Application
Specification
Related Products
Related Solutions

Product Feature

0°/8°/41°/42.5/45° (according to customer requirements)
Distance between fiber(um): 125/250/500/750
Diameter tolerance(mm): ±0.1(user-defined)
High transmission rate, low comsuption, high stability and reliability
SMF28e/G657A1(2)/MM/PM
Reliability: GR1221 standard passive product reliability standard 500 times TC; 2000hr DH

Product Application

Apply for AWG/WSS/VMUX/OCM/MCS
High speed silicon photonics transceiver modules
QSFP, QSFP+ ,SR, SNAP12
Parallel optical transmission
HDMI, AOC

Specification

Matched Fiber Array Values
Channel	1CH	2CH	3CH	4CH	8CH	16CH
FA Pitch (μm)	127 or 250
FA Pitch Accuracy (μm)	/	±0.5			±0.7	±1.0
Small Die Spot Size (μm)	5.5、4、3.3 @ 1310 4、3.2 @ 1550
IL (max) (dB)	<0.3
FA Length (mm)	3~5
In addition to the above characteristics, the extinction ratio index of PM series FA is as follows
PER(min) (dB)	Small die pot>22 Non-MFD matched>28
