MPO/MTP Harness Cables

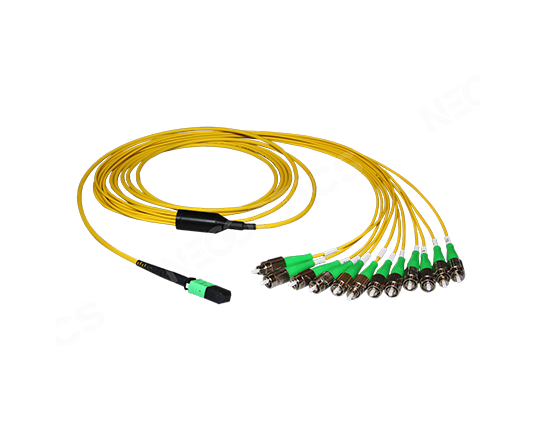

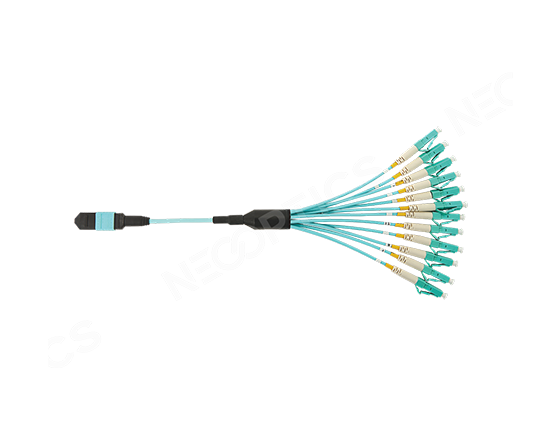

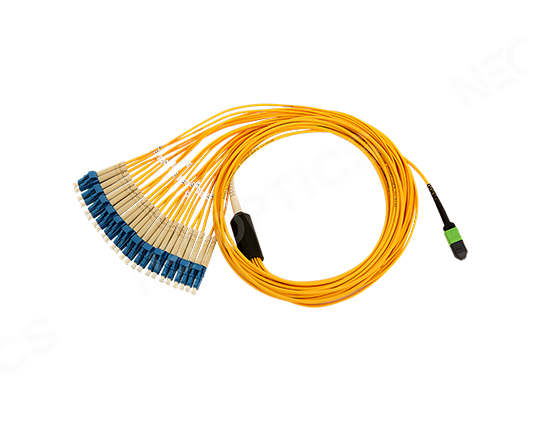

MPO/MTP® hydra cable is a solution 0.9mm cables utilizing an MPO/MTP® connector on one end and multiple single-fiber connectors (LC, SC, FC, etc.) on the other end, it is deployed inside plug and play cassette modules and used for multi-fiber to single-fiber splitting out interconnects.

NEOPTICS MPO/MTP® hydra cables comply with IEC61754, IEC61755, GR1435, TIA568 standards, and adopts a push-pull locking structure with male and female heads to ensure butt tightness and low loss.

Consult

Product Feature
Product Application
Specification
Related Products
Related Solutions

Product Feature

Connect the trunk cable output to the distribution frame system
4, 8,12,16, 24 cores available
The branch connector can be LC, SC, FC, ST, etc
Comply with IEC-61754-7, GR-1435-CORE, RoHS

Product Application

Data center interconnect
High-density fiber management
Telecommunication networks and CATV networks
Link between O/E modules

Specification

Connector Type	MPO				LC/SC/FC/ST
Test Items	SM		MM		SM		MM
Insertion Loss (dB)	Standard	Elite/Low	Standard	Elite/Low	Standard	Elite/Low	Standard	Elite/Low
Insertion Loss (dB)	≤0.70	≤0.35	≤0.50	≤0.35	≤0.30	≤0.10	≤0.30	≤0.10
Return Loss (dB)	≥60		≥20		UPC≥50, APC≥60		≥35
Durability (times)	≥200
Operating Temperature (℃)	-25 ~ +70
Test Wavelength (nm)	1310/1550		850/1300		1310/1550		850/1300
