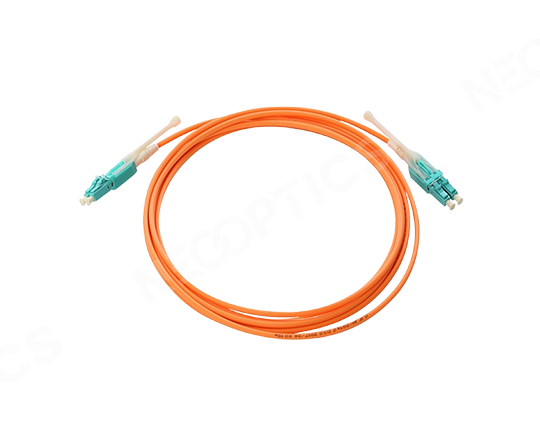

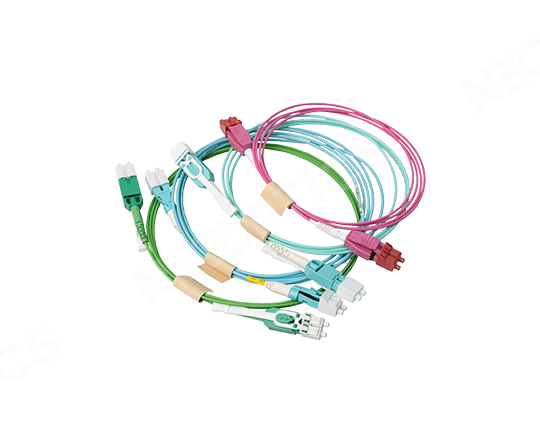

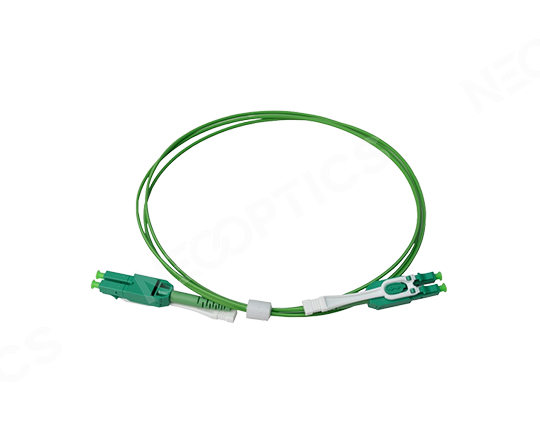

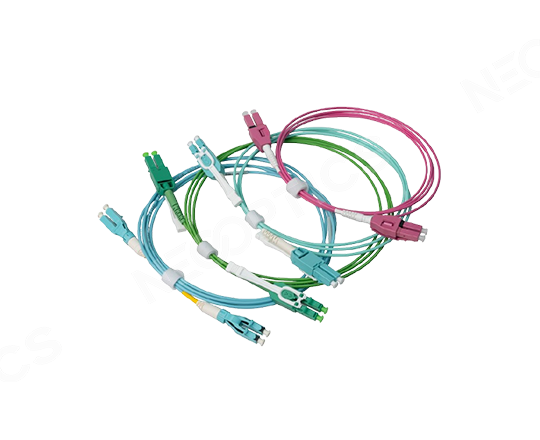

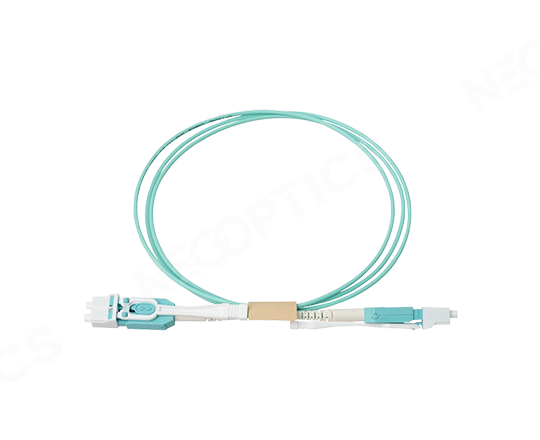

Fiber Optic Patchcord-LC Uniboot

The uniboot patchcord adopts a duplex uniboot structure to achieve dual-channel transmission through a single cable, reducing the number of cables and optimizing space utilization, especially designed for high-density cabling scenarios such as data centers. Its reverse-polarity design supports quick and easy polarity flipping without any tool, simplifying maintenance.

Consult

Product Feature
Product Application
Specification
Related Products
Related Solutions

Product Feature

Using a double-core structure, can add the pull rod, high installation density, fast installation and unloading
2.0mm, 3.0mm diameter cable available, single mode and multi-mode for option
Comply with IEC and GR-326-CORE

Product Application

Telecommunication System
Testing Facility
CATV System
Long-haul Telecommunication
LAN System

Specification

Fiber Mode	SM (G652D/G657A1/G657A2/G657B3)		MM (OM1/OM2/OM3/OM4/OM5)
Diameter (mm)	2.0mm / 3.0mm
End-face Finishing	UPC	APC	PC
Insertion Loss (dB)	≤0.30	≤0.30	≤0.30
Return Loss (dB)	≥50	≥60	≥35
Exchangeability (dB)	≤0.20
Repeatability (dB)	≤0.20
Operating Temperature (℃)	-25 ~ + 70
Operating Wavelength (nm)	1310, 1550		850, 1300
Cable Material	PVC, LSZH, OFNP, OFNR
