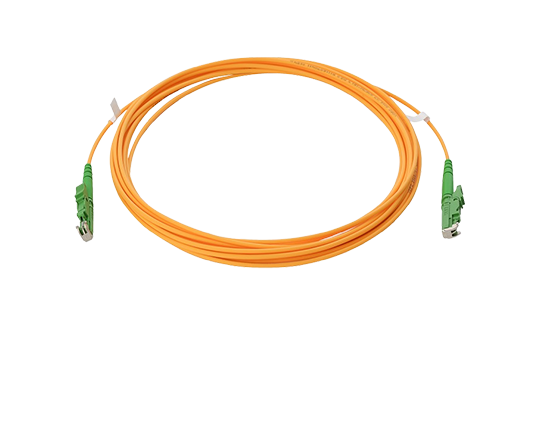

E2000-E2000 Fiber Optic Patchcord

Fiber patchcord is a fiber cable that has fiber connectors terminated on one or both two ends, providing interconnect and cross-connect of applications over installations in telecommunication system, data centers, FTTx, LAN and WAN system. As a professional fiber optic patchcord manufacturer, NeOptics provides all types of fiber patchcord assemblies with various types of fiber connectors including LC, SC, ST, FC, MU, MTRJ, E2000, SN, CS, etc.

Consult

Product Feature
Product Application
Specification
Related Solutions

Product Feature

UPC, APC, polishing available
Low insertion loss and high return loss
Available for single mode/multimode and simplex/duplex
0.9mm, 2.0mm, 3.0mm diameter cable available
Comply with IEC and GR-326-CORE
Comply with RoHS

Product Application

Telecommunication System
Testing Facility
CATV System
Long-haul Telecommunication
LAN System

Specification

Fiber Mode	SM (G652D/G657A1/G657A2/G657B3)		MM (OM1/OM2/OM3/OM4/OM5)
Diameter (mm)	0.9mm / 1.6mm/ 2.0mm / 3.0mm
End-face Finishing	UPC	APC	PC
Insertion Loss (dB)	≤0.30	≤0.30	≤0.30
Return Loss (dB)	≥50	≥60	≥35
Exchangeability (dB)	≤0.20
Repeatability (dB)	≤0.20
Operating Temperature (℃)	-25 ~ + 70
Operating Wavelength (nm)	1310, 1550		850, 1300
Cable Material	PVC, LSZH, OFNP, OFNR
